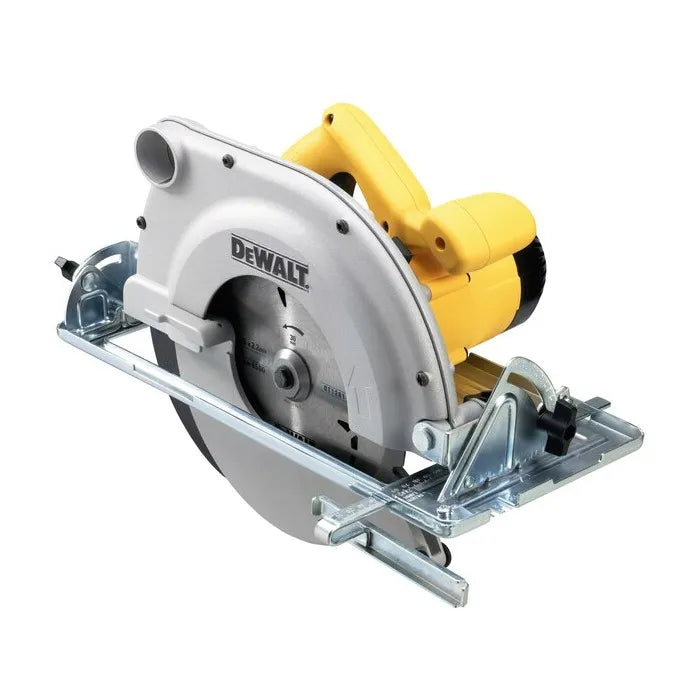

CIRCULAR SAW 235 mm 1750W 220V

Features

• High power; durable motor delivers excellent power even at a maximum depth of cut
• Stable block construction for low vibration running and long service life
• Spindle lock for ease of blade change
• Optimum balance for fatigue-free operation
• Additional handle for two-handed work
• Steel shoe for added durability
• Protection hood for sawdust extraction

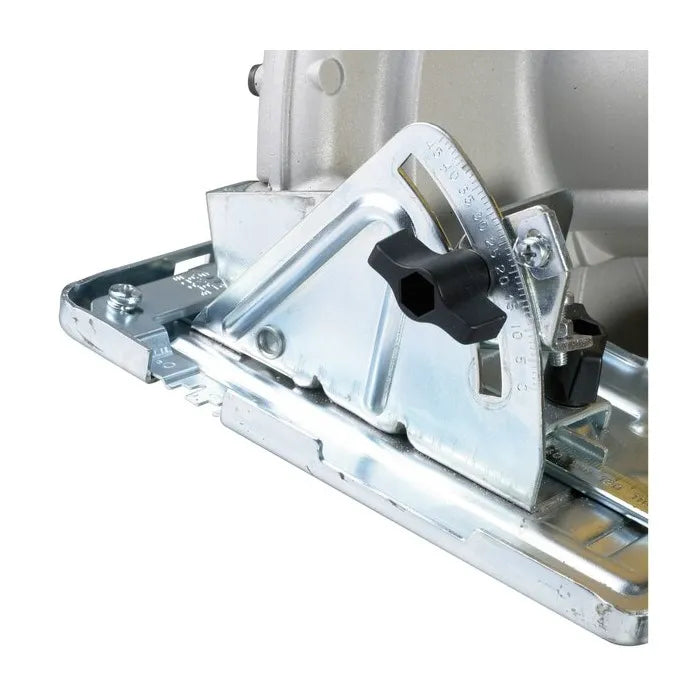

• Variable adjustment of the mitre angle to 45ø for added versatility

  Technical Information

  • Power Source
  • Corded
  • Voltage
  • 220V
  • Power Input
  • 1750 Watts
  • No Load Speed
  • 4700 rpm
  • Blade Diameter
  • 235 mm
  • Blade Bore
  • 30 mm
  • Bevel Capacity
  • 45°
  • Max. Depth of Cut at
  •  90§86 mm
  • Max. Depth of Cut at
  • 45§62 mm
  • Weight
  • 8.2 kg
  • Length
  • 430 mm
  • Height
  • 290 mm
  • Hand/Arm Vibration
  • 2.5 m/s²
  • Uncertainty K 1 (Vibration)
  • 1.5 m/s²
  • Sound Pressure
  • 99 dB(A)
  • Sound Pressure Uncertainty
  • 3 dB(A)
  • Sound Power
  • 110 dB(A)
  • Sound Power Uncertainty
  • 3 dB(A)
