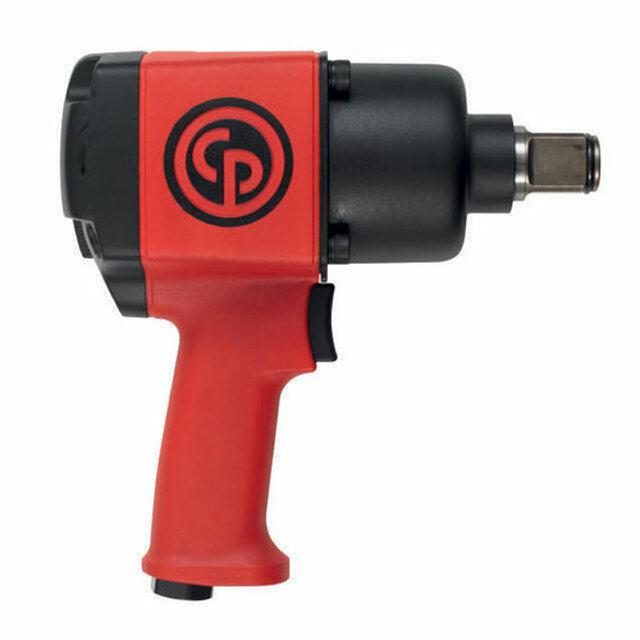

Chicago Pneumatic CP6773 Impact Wrench | 1" Drive | Max Torque 1200 Ft. Lbs | 6300 RPM
السعر الاصلي
1,893.75
-
السعر الاصلي
1,893.75
السعر الاصلي
1,893.75
1,893.75
-
1,893.75
السعر الحالي
1,893.75
Benefits
Compact and Versatile for Industrial Maintenance applicationsBuilt to withstand the harshest environments and the most demanding applicationPowerful and very hard hitting tool
Features
1" impact wrench with Dual retainerShort and narrow side-to-center for easy accessRobust Steel Clutch housingPowerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)Combined power regulator with forward/reverse
| Metric | Imperial | |
|---|---|---|
| Model | CP6773 | |
| Part number | 6151590410 | |
| Actual air consumption | 14.2 l/s | 30 cfm |
| Air inlet thread size | 3/8 " | |
| Blows per minute | 900 | |
| Bolt size | M27 mm | |
| Box dimensions | 224*90*232 mm | |
| Clutch type | Twin Hammer | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 6300 rpm | |
| Handle type | Pistol | |
| Length | 227.5 mm | 8.8 " |
| Maximum Torque (reverse) | 1630 Nm | 1200 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 5.6 kg | 12.3 lb |
| Power/weight ratio | 291.1 Nm/kg | 97.6 ft.lb/lb |
| Side to center | 41 mm | 1.6 " |
| Socket retainer | Ring | |
| Sound Power | 107 db(A) | |
| Sound pressure | 96 db(A) | |
| Square drive | 1 " | |
| Vibration | 9.4 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 1.3 m/s² | |
| Working Torque Range (fwd) | 350 - 1290 Nm | 260 - 950 ft.lbs |
