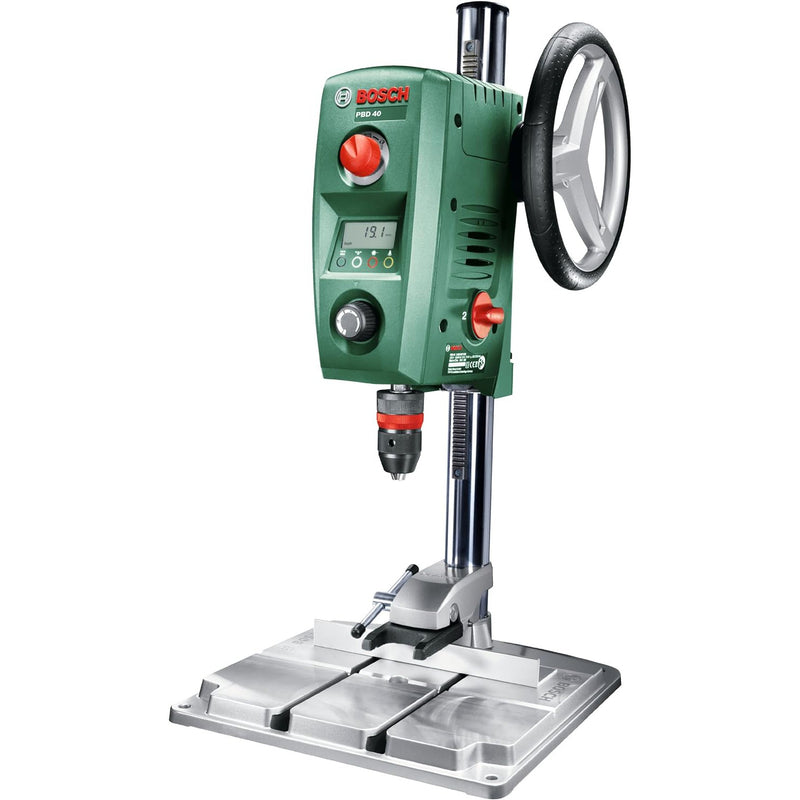

BENCH DRILL PBD 40 دريل عامودي

by BOSCH
Sold out
Original price
1,869.00
- Original price
1,869.00
Original price
1,869.00
1,869.00
-
1,869.00
Current price
1,869.00
Enjoy easy and comfortable drilling with precise results
  • Digital system to read drilling speeds and depths easily
  • Quick clamp holds even round materials for drilling accuracy
  • Keyless precision chuck automatically retightens the drill bit
  • 2-speed gearbox: high power in first gear and high speed in second gear
  • Simply adjust speed to materials with Bosch Electronic for better results

Precision made easy – comfortable drilling with accuracy

The PBD 40 bench drill offers the ultimate combination of precision and convenience. Read drilling speeds and depths on its digital display or turn the knob underneath for stepless speed adjustments. It offers a quick clamp to hold even round materials, while a keyless precision chuck automatically retightens the drill bit for added convenience. It features a 2-speed gearbox, delivering high power in first gear and high speed in second gear for perfect material adaptations. It is ideal for use on a wide variety of projects in wood, metal, and aluminium. It features LED, laser, Bosch Electronic, large work plate, and parallel guide.

    • Best performance with enhanced features

  • Larger and more challenging tasks

Masters all types of applications.

Precise and right-angled drilling
Easily and quickly performing serial drilling
Ideal for drilling metal as well

Functions and Advantages of PBD 40

Enjoy optimal control when drilling thanks to the digital display that informs about current drilling speeds or depths during operation.

Optimal control over drilling operation

Enjoy optimal control when drilling thanks to the digital display that informs about current drilling speeds or depths during operation.

Maintains clamping force even during hard use

The automatic retightening drill chuck maintains a strong clamping force even during tough projects. Its chuck automatically retightens the drill bit, eliminating the need to use keys or fix drill bits manually.

Offering firm hold even for workpieces of round shape, the Quick Clamp also provides full control for precision drilling in objects of irregular shape.

Accurate drilling even on round shapes

Offering firm hold even for workpieces of round shape, the Quick Clamp also provides full control for precision drilling in objects of irregular shape.

Consistent power and speed

Bosch Constant Electronic automatically adjusts tool power, adapting to loads while keeping speed, for great results without the overload risk.

The laser indicates the precise point where the drill will hit the material, allowing for quick and accurate results.

Laser point for precise drilling

The laser indicates the precise point where the drill will hit the material, allowing for quick and accurate results.

Powerful lighting for clear visibility

The integrated worklight features powerful built-in LEDs, which illuminate the targeted work space to enable working in dark confines and corners.


Technical details for PBD 40

Technical specifications
Power input
710 W
No-load speed (1st gear / 2nd gear)
200 – 850 / 600 – 2,500 rpm
Laser type
650 nm, <1 mW
Laser class
2
Max. drilling diameter in steel
13 mm
Max. drilling diameter in wood
40 mm
Chuck jaw width
1.5 – 13 mm
Drill stroke
90 mm
Base plate dimensions (W x D x H)
330 x 350 x 30 mm
Weight
11,200 kg


Delivery details: PBD 40

Order number:
Parallel guide
1 600 A00 0UA
Quick-action clamp
1 600 A00 0TT
Carton
Order number:
EAN Code
0603B07040
3165140789813
