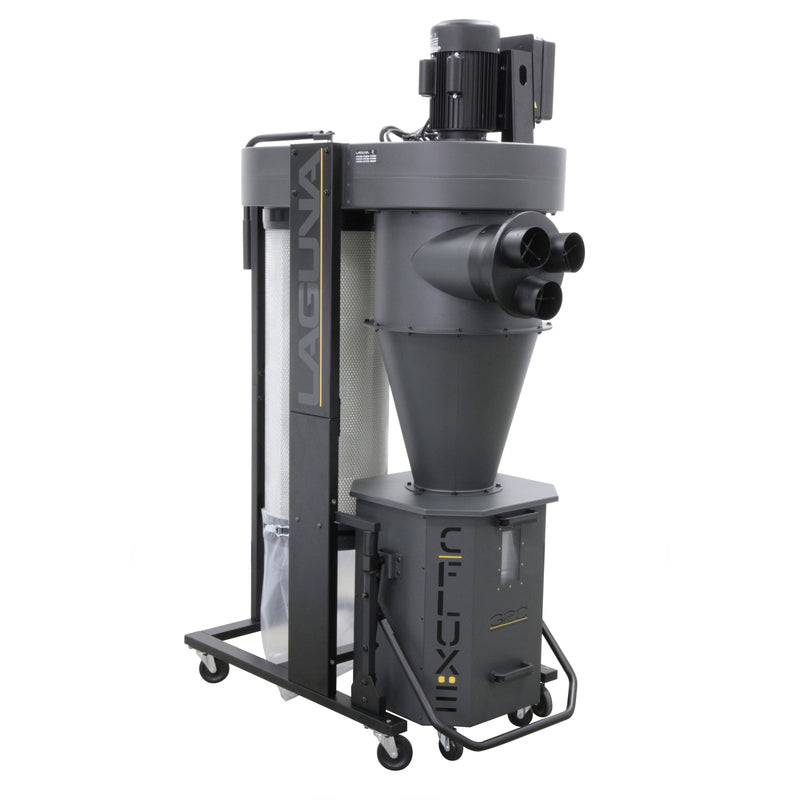

C|Flux: 3 Cyclone Dust Collector

Sold out
Original price
9,500.00
- Original price
9,500.00
Original price
9,500.00
9,500.00
-
9,500.00
Current price
9,500.00





تضع هذه المجموعة معيارًا جديدًا لأنظمة شفط الغبار و النشارة الإعصارية, تم تصميم أنبوب الشفط الأفقي لزيادة تدفق الهواء مع تحسين كمية الهواء العابرة عبر النظام
تمت إعادة تصميم جميع الأشكال والأبعاد لتحسين الأداء

تأتي بشكل قياسي مع علبة 1 ميكرون توفر ترشيحًا بنسبة 99.97٪ من الجسيمات بين أحجام من 0.2 إلى 2 ميكرون وتتميز بـسطح فلترة بمساحة 109 قدماً مربعًا / .مصنوع من مرشح مطوي من البوليستر المغزول لضمان أقصى تدفق للهواء. بالإمكان تنظيفه يديوياً بزاوية 270 درجة بشكل قياسي.



يمكن تجهيزها بمجموعة تنظيف تلقائي اختيارية في حال رغب العميل بالشراء أو يمكن شرائها كإضافة لاحقًا
تشتمل مجموعة أدوات التنظيف التلقائي على مستشعر ذكي يكتشف ارتفاع الضغط الساكن مما يشير إلى انسداد الفلتر ويقوم تلقائيًا بتنشيط إجراء التنظيف

يعمل نظام الرفع المبتكر على تحريك البرميل بعيدًا عن الأرض وإغلاقه على غطاء البرميل، مما يؤدي إلى تجنب الحاجة إلى خرطوم مرن. يتيح هذا التصميم نقل البرميل بشكل أفضل



    قدرة المحرك: 3 حصان
    المرحلة : أحادي المرحلة
    الجهد: 220 فولت
    الامبير: 22 امبير
    قدرة القاطع الموصى بها: 30 أمبير
    التردد :60 هيرتز
    منفذ كهرباء إضافي: غير متوفر
    دورة في الدقيقة: 3450
    نوع مفتاح التشغيل: مفتاح تحكم عن بعد بترددات الراديو
    جهاز تحكم عن بعد محمول يدويا: ذو تردد عالي
    أقصى ضغط ستاتيكي: 11.2 ″
    حجم الدافع/ المروحة: 15.5 ″
    مادة الدافع: الفولاذ
    نوع الدافع: زعنفة نصف قطرية
    المعايرة حسب: ISO 1940
    أقطار منافذ الشفط: 3 منافذ بمقاس 8بوصة*4بوصة
    سعة البرميل:46 جالون.
    برميل ثماني الشكل: مع آلية إدراج معدنية
    كيس التجميع الخاص بالاسطوانة:  كيس بلاستيكي 610*950 مللي متر
    نوع علبة الفلتر: 1 ميكرون
٪كفاءة الترشيح: 0.2-2 ميكرون بنسبة 99.97
    قطر العلبة: 400 مم (15.75 بوصة)
    طول العلبة: 900 مم (19.69 بوصة)
    مساحة سطح التصفية: 9.5 متر مربع / 109 قدم مربع
    تنظيف العلبة: عبر المقبض اليدوي / * تتوفر مجموعة تنظيف تلقائية اختيارية
    علبة جمع الغبار السفلى لفلتر العلبة: كيس بلاستيكي (400 × 600 مم)
    العجلات: عجلات مسطحة بمقاس 4 بوصة
    مستوى الضوضاء : 88 ديسيبل ( عند أخذ القراءات من مسافة 9.8 قدم)
    وزن الآلة: 140 كلغ / 309 رطل
    وزن الشحن: 170 كجم / 375 رطل
    أبعاد الآلة بعد التجميع : (طول*عرض*إرتفاع) | 1178*690*2025 مم | 46*27*79 بوصة





The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM.
All shapes and dimensions has been reevaluated to optimize performance.

The c|flux:3 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.



The c|flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure.

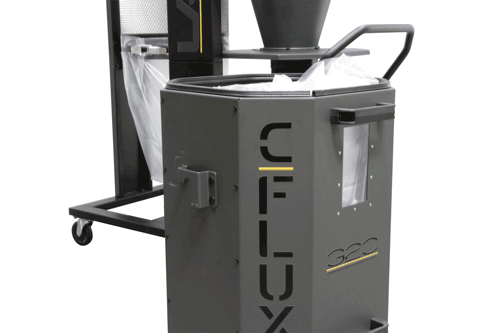

Ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

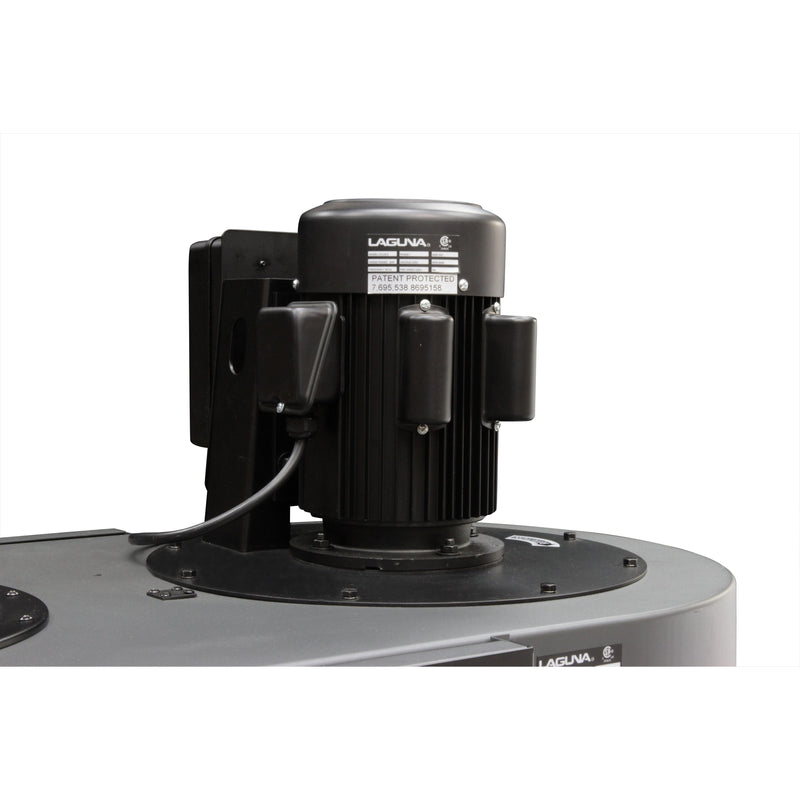

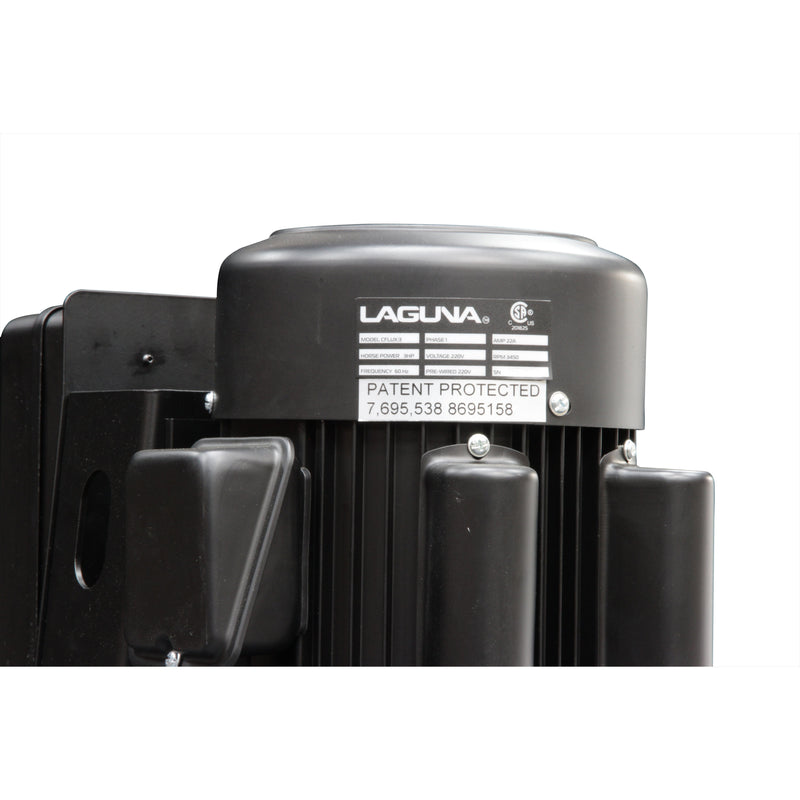

  • Motor HP: 3 HP
  • Phase: 1
  • Voltage: 220v
  • Amps: 22 Amps
  • Recommended Breaker: 30 AMP
  • Hertz: 60
  • Plug: No
  • RPM: 3450

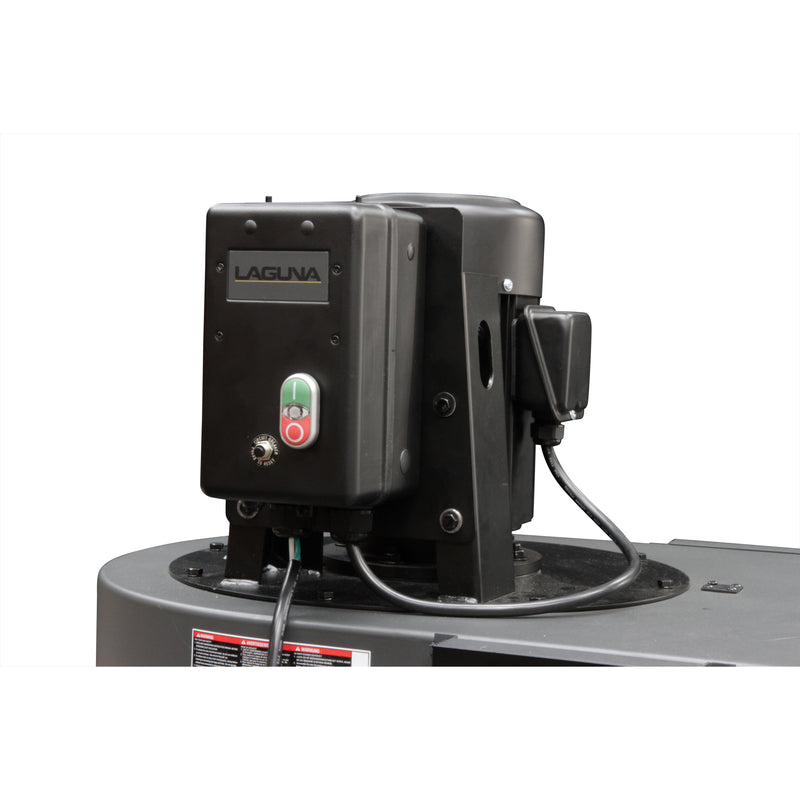

  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: High Frequency
  • Shop Setting CFM*: 1624
  • Inlet CFM: 2817
  • Max Static Pressure (inches of water): 11.2″
  • Impeller/Fan Size: 15.5″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940

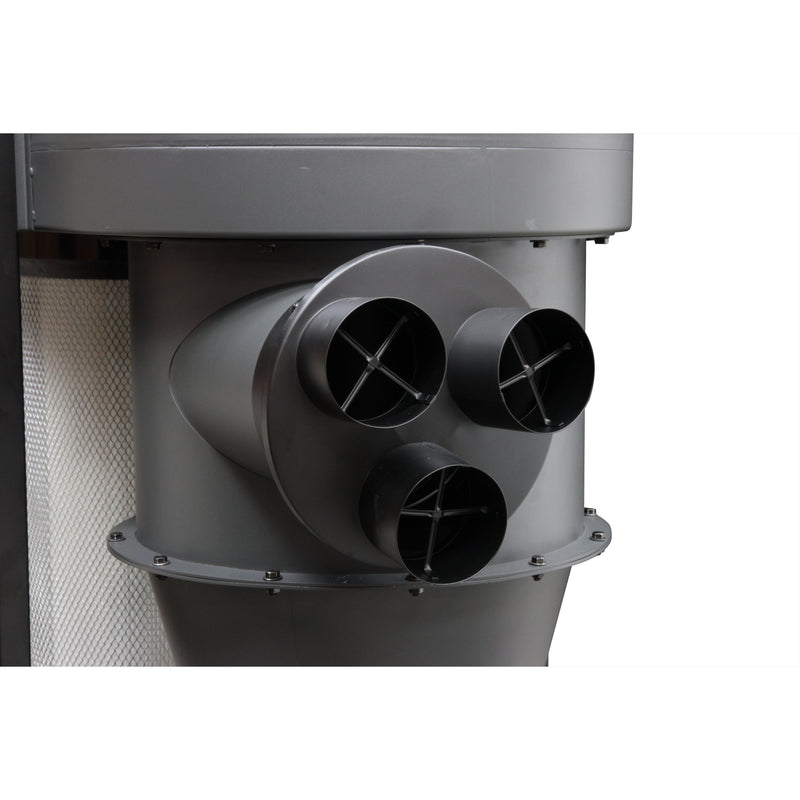

  • Inlet Diameters: 8″ by 4″ x 3 ports
  • Drum Capacity: 46 Gal.
  • Octagon drum: Metal Drum Insert
  • Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2 micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: 400mm (15.75″)
  • Canister length: 900mm (19.69″)
  • Filter Surface Area: 9.5m²/109ft²

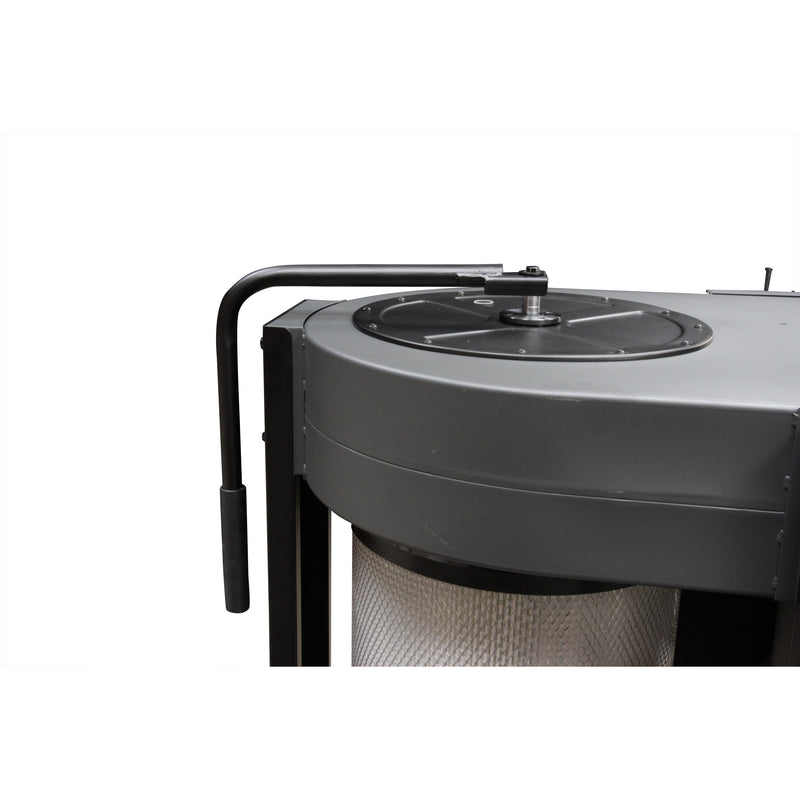

  • Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available
  • Canister filter lower dust collection: Plastic bag (400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4″ Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 88 d B(A) (@9.8ft)
  • Machine weight: 140kgs/309Lbs
  • Shipping weight: 170kgs/375Lbs
  • Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178x690x2025mm
