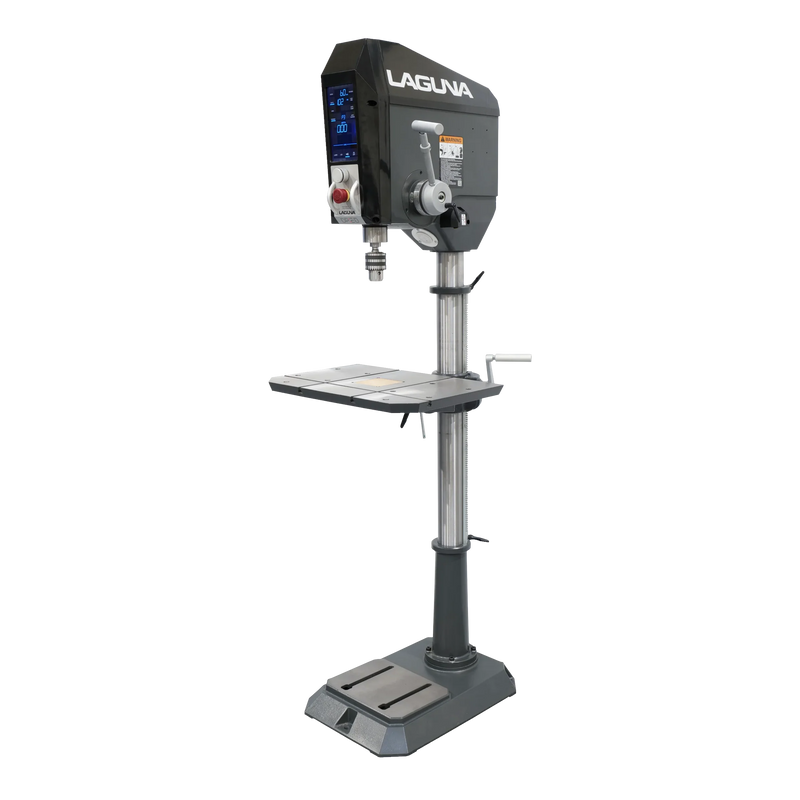

DP:20 1.5 HP 220v Drill Press
Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Key Features:
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
1.5 hp PWM Motor: Constant torque with forward and reverse functions.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
Laguna LogoGrey.svg
Support
(800) 234-1976
Back in Stock! The Laguna V:10 Bandsaw. Learn more
c459d5988c6ea051dda39a11b7bb763c.svg
DP:20 1.5 HP 110-120V Drill Press
Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Key Features:
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
1.5 hp PWM Motor: Constant torque with forward and reverse functions.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
SKU: MDP20-1
$2,399
Find A Dealer
Register Machine
CSA LogoWhite
Laguna DP | 20
Motor
DC Brushed
PWM (Pulse Width Modulation)
Power
1.5 HP
15 AMP
Voltage
220 volt
Frequency
60 Hz
Wheel Speed
Electronic Variable 60 – 3600 RPM Forward / Reverse
Power Transfer
Poly-groove drive belt
Machine Control
LCD Touch Screen Smart Panel
Base Size
22.83″ x 16.92″
Column Diameter
3.15″ (80 mm)
Weight
Net wt 304 lbs. (138 kg)
Gross wt 326 lbs. (148 kg)
Packing Dimensions
72.5″ x 28.5″ x 20″
1840 x 725 x 406mm
Memory Settings
5 Memory Settings
Swing
20″ (1830 mm)
Spindle Taper
MT2
Quill
6″ Travel – 2.6″ Diameter
Chuck Capacity
5/64 – 5/8″ (2 – 16 mm)
Table
15″ x 22″
3 T-slots
10 Clamp Holes
Table Movement
+/- 90 Degree Tilt
360 Degree Swivel around column
Spindle to Table
30″ Max
Spindle to Base
49.5″ Max
Optional Accessories
Work clamps for T-slot
Quick clamps for Clamp Holes
Bolt-on Work Lamps
Digital Screen Controls
FWD / REV
Inch / mm
Speed Setting
Depth Setting
Material Zero
Auto Start
Auto Reverse
Memory Programming and Selection
