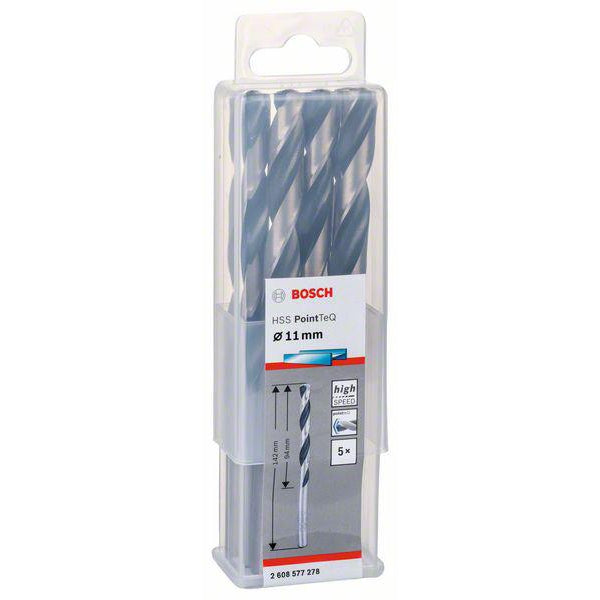

Bosch Metal Twist Drill HSS PointTeQ DIN 338, 11 x 94 x 142 mm

من BOSCH
54.00 SR
15% ضريبة القيمة المضافه للطلبات داخل المملكة
SKU 2 608 577 278

ريش ثقب حلزونية من بوش


تُمكّن رؤوس الثقب الملتوية من الثقب السريع في المعادن بفضل تصميم الطرف بتقنية متقدمة

طرف للتمركز الذاتي يحول دون الانحراف ويجعل من بدء الثقب السريع و السهل أمرًا ممكنًا
تؤدي نسب الحفر المتزايدة إلى تقليل الحرارة و مستوى التآكل
ساق أسطوانية متوافقة مع قابض رأس المثقاب ثلاثي الفك

التفاصيل الفنية

عدد الريش في العبوة 5 ريش
قطر الريشة      11 مم
طول الريشة 142 مم
طول قطاع العمل 64 مم

Bosch HSS PointTeQ metal drill, pr. 11.1x94/142mm

The HSS PointTeQ spiral drill enables fast drilling in metal thanks to the PointTeQ tip design. A quick and simple start of drilling is enabled by a self-centering tip that prevents deflection. The higher drilling speed generates less heat and less wear. The PointTeQ tip remains sharp and ensures long-term durability. The drill bit is suitable for use on bolt and guide holes in alloyed and non-alloy steel, non-ferrous metals, cast iron, cast steel and plastic. It is equipped with a cylindrical shank (the diameter of the shank coincides with the diameter of the drill) and is suitable for use in stand and hand drills.

It has a low risk of breakage, especially in drills with a diameter of less than 6 mm, since the tip has a highly elastic body. The groove with a black oxide coating allows quick removal of chips. The HSS spiral drill PointTeQ is manufactured according to DIN 338. The drill is of type N (groove angle) with a tip of 135 degrees.

Properties:

  • HSS PointTeQ spiral drill enables fast drilling in metal thanks to PointTeQ tip design
  • Self-centering tip prevents deflection, allowing quick and easy drilling to begin
  • Higher drilling speed generates less heat and causes less wear
  • The PointTeQ tip stays sharp and ensures long-term durability

Technical data:

  • Product range: PRO accessories
  • Diameter: 11.1 mm
  • Working length: 94 mm
  • Overall length: 142 mm
  • Drill with cylindrical shank made of carbon steel suitable for drilling in cast iron, grey cast iron, steel, ductile iron, non-ferrous metals, hardened plastics, etc.
  • Peak angle 135 degrees
  • DIN 338

Scope of delivery:

  • Number of pieces: 5 pcs
