Create pocket holes with twice the strength using the Kreg Pocket-Hole Jig XL. This extra-large jig makes it easy to build big and build strong using 2x4 or 4x4 boards, paired with the impressive holding power of XL Pocket-Hole Screws.
The Pocket-Hole Jig XL features hardened-steel drill guides that position the stepped XL drill bit at the perfect angle for extra-large pocket holes. The two drill guides position a pair of pocket holes at ideal spacing on the width of a 2x4 or 4x4 – but spacing can be adjusted by twisting the two drill guides apart easily to use them separately.

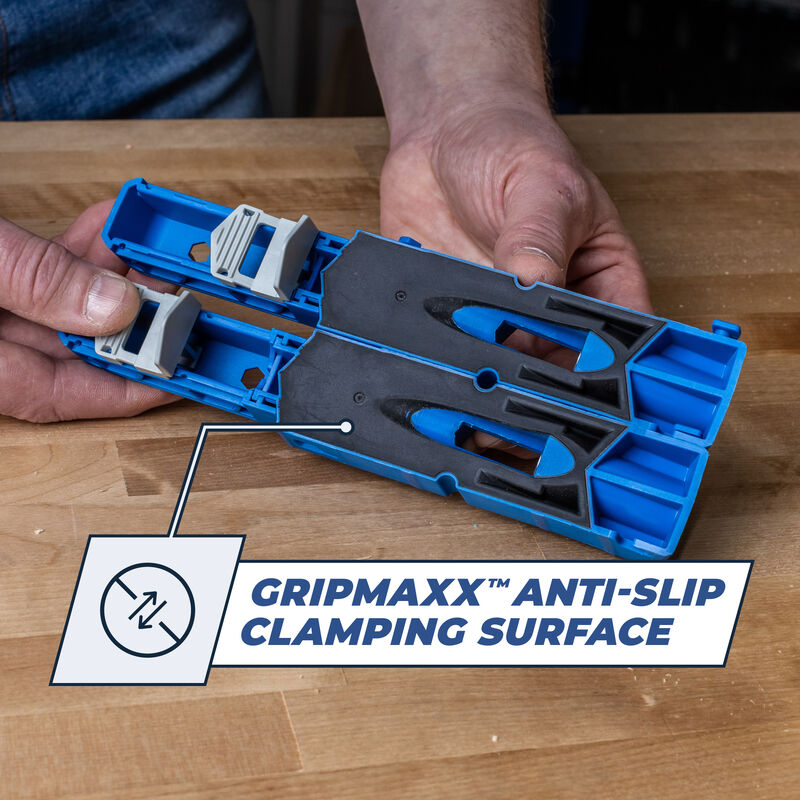

The GripMaxx™ material on the underside of the jig helps it stay put while you drill. The jig includes a clamp pad adapter to secure your jig easily with Kreg clamps, as well as many other brands.
Combined with the strength of XL Pocket-Hole Screws, which are specially engineered with extra holding power, the Pocket-Hole Jig XL is perfect for building big.
This product replaces the discontinued KREG jig HD
features
- Creates pocket hole joints that are twice as strong as standard pocket-hole joints
- Works with 2x4 and 4x4 boards
- Hardened-steel drill guides
- Twist-apart dual drill guides
- GripMaxx™ non-slip surfaces
- Simple jig and drill-bit setup
construction
Durable, impact resistant construction
capacity
Materials 1 1/2" thick and thicker, presets at 1 1/2" and 3 1/2"
compatibility
- Kreg Pocket-Hole Jig XL Drill Bit
- Kreg XL Pocket-Hole Screws

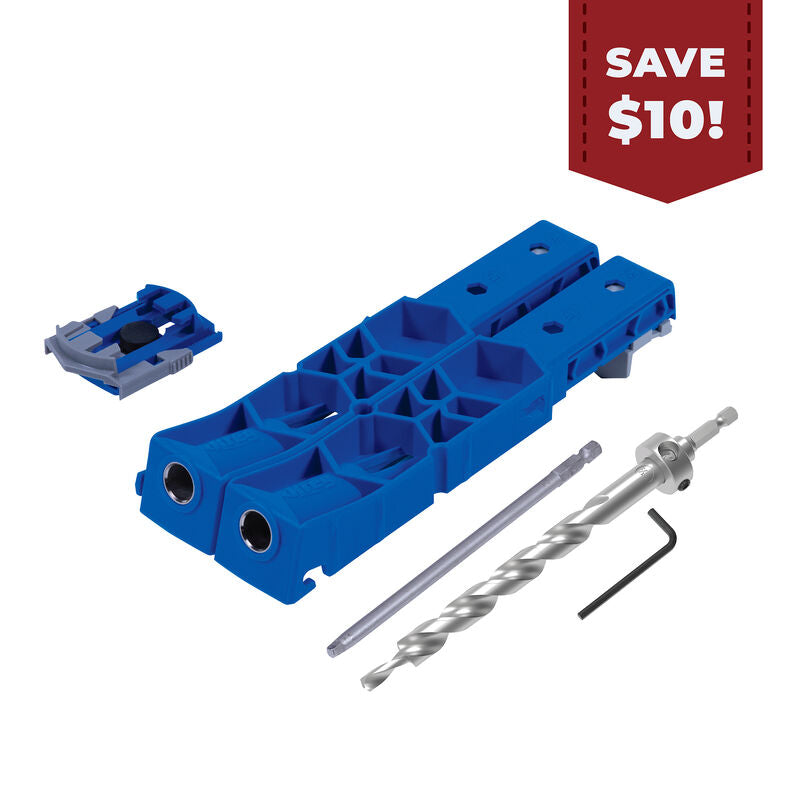

includes
- (1) XL Pocket-Hole Jig

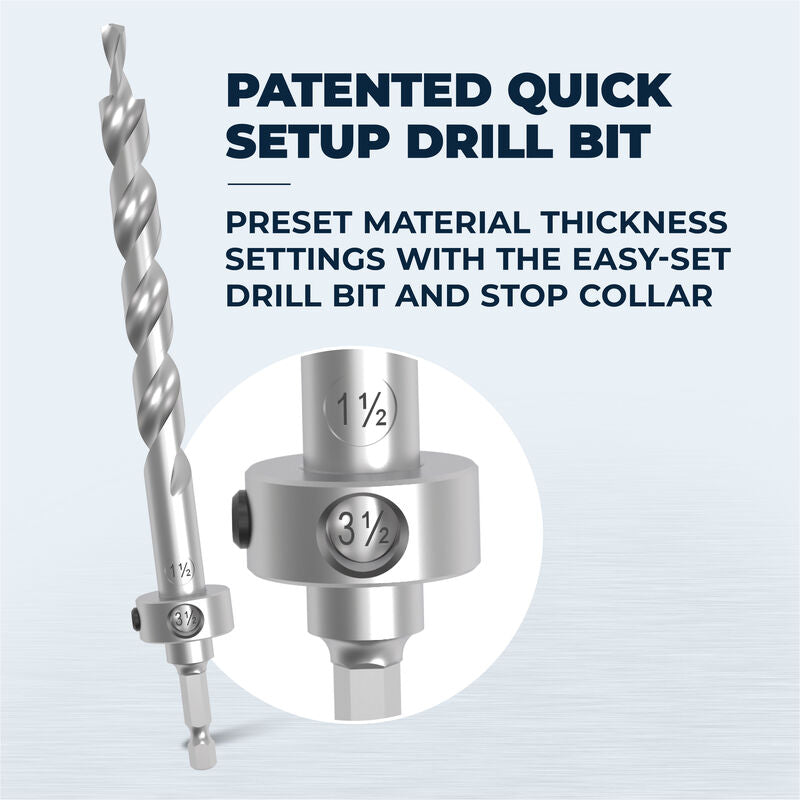

- (1) 1/2" (12mm) Diameter XL Stepped Drill Bit
- (1) 6" #3 XL Square Driver Bit
- (1) Easy-Set Stop Collar
- (1) Hex Wrench
