laguna 25-50 Drum Sander حجز مسبق

8,625.00 SR
SKU SUPMX-72550

حجز مسبق موعد الشحن المتوقع 15/7

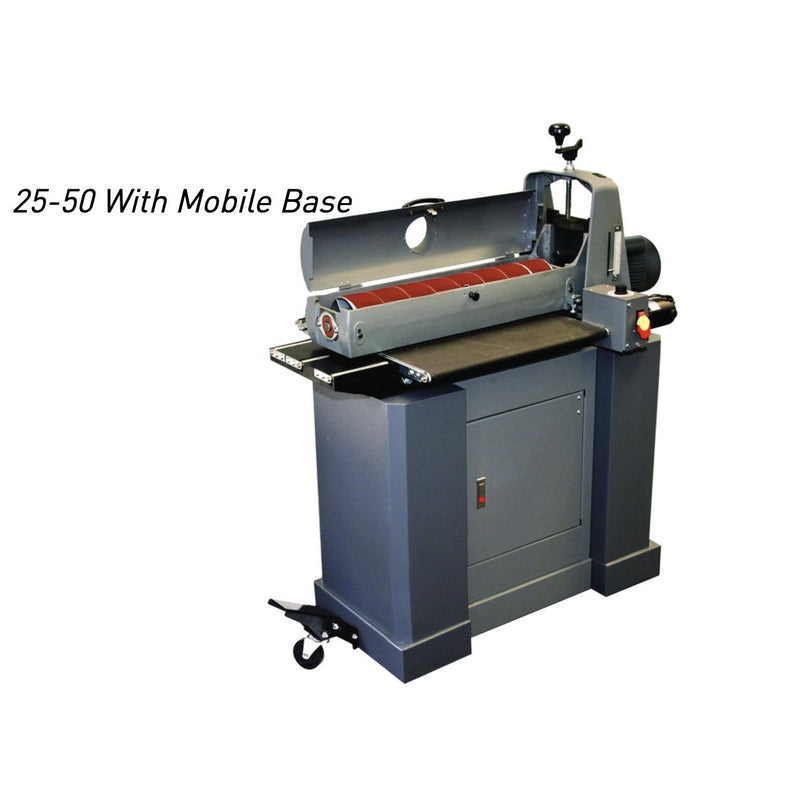

The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50” in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!

The 25-50 Drum Sander comes standard on the Closed Mobile Base Stand. The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.

THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK

Features

  • 25″ Sanding In A Single Pass, 50″ In A Double Pass
  • More Room For Easy Access To Abrasives – No Special Tool Needed
  • Closed Stand Has Built-In Wheels And Storage
  • New Mobile Base Helps Stand And Machine To Move With Ease

Maximum Sanding Width: 50″ (Two Passes)

Minimum Sanding Length: 2¼”

Maximum Sanding Thickness: 4″

Minimum Sanding Thickness: 1/32″

Dimensions (D x W x H): 27″ x 46″ x 53″ (On Stand)

Drum: 5 x 25 Extruded Aluminum

Drum Speed: 1740 RPM

Drum Speed: 1740 RPM

Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended

Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM

Drive Motor (TEFC): 1¾ HP

Power Requirements: 110 V 20 amp

Shipping Weight (lbs): 369 (3 boxes including stand)

Shipping Dimensions (L x W x H): 45″ x 16″ x 24″

  • Simple Alignment Feature – Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
  • Indexed Alignment Setting – Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 25”, the index lever will properly adjust the conveyor for flawless wide sanding
  • Drum Will Never Go “Out Of Alignment” – The drum carriage is bolted to the base, preventing any movement or alignment issues



Additional Features

  • INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented abrasive attachment system effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest Access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum
    • Metal, not plastic, is formed to maximize air flow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
  • Mobile base allows for stand and machine to be to moved easily
