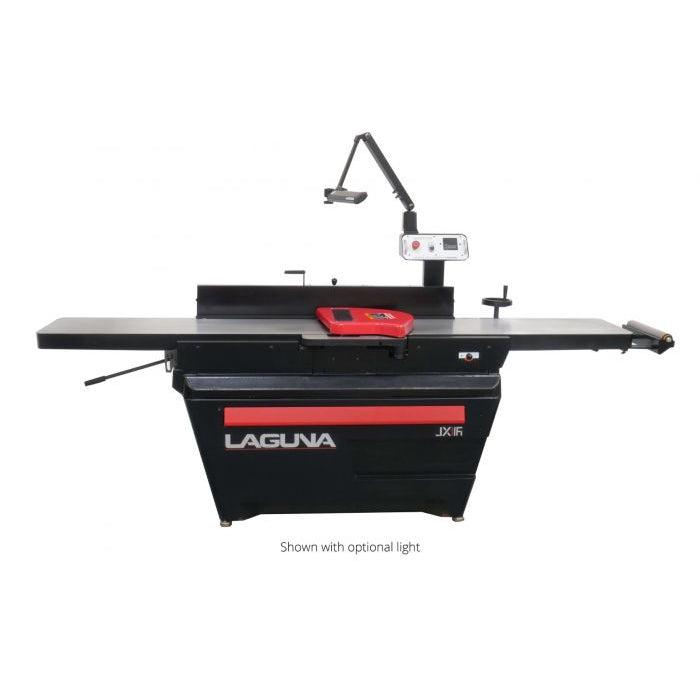

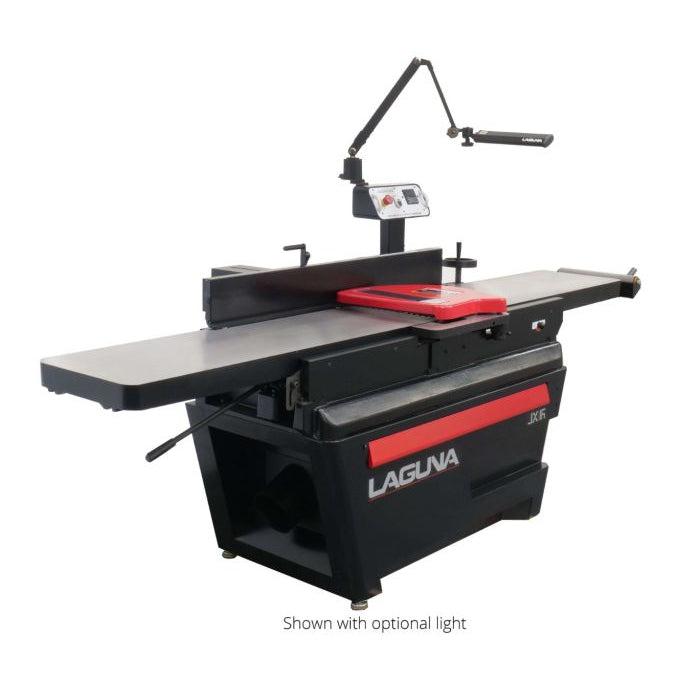

LAGUNA JX|16,JOINTER

33,000.00 SR
15% ضريبة القيمة المضافه للطلبات داخل المملكة
SKU MJ16X100P-0130

Specifications:

  • Motor: 220V 7.5HP 3 Phase 60hz/20 Amp
  • CSA: Yes
  • Bed Size: 16″ x 100″
  • Infeed Table Pull-Out Extension: 10″
  • Rabbetting Capacity: 3/4″
  • Fence Size: 5-3/4″ x 47″ Aluminum Fence
  • Fence Tilt: ±45/90°
  • Max. Depth Of Cut: 1/8″
  • Table Height From Floor: 32″
  • Safety Bar Shut-Off: Yes
  • Wheels Built-In: No
  • Bracket To Mount Light: Yes
  • 110V Outlet For Light: Yes
  • Bracket To Mount Feeder: Yes
  • Dust Port Diameter: 6″
  • Cutterhead Insert #: 90 x 4-Sided Carbide, 6 Row
  • Cutterhead RPM: 5500
  • Cutterhead Diameter: 3-7/8″
  • Bed Adjustment: Parallelogram
  • Dimensions Set Up (Approx): 103″ x 48″
  • Dimensions Shipping: 105″ x 35″ x 48″
  • Net/Ship Weight: 1078/1254 Lbs. (1 Box)

    Features:

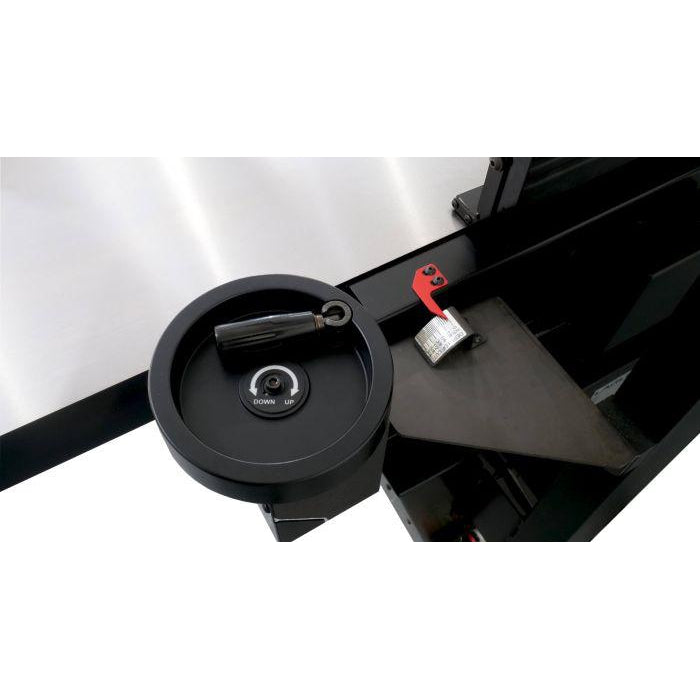

    • Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
    • Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
    • New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

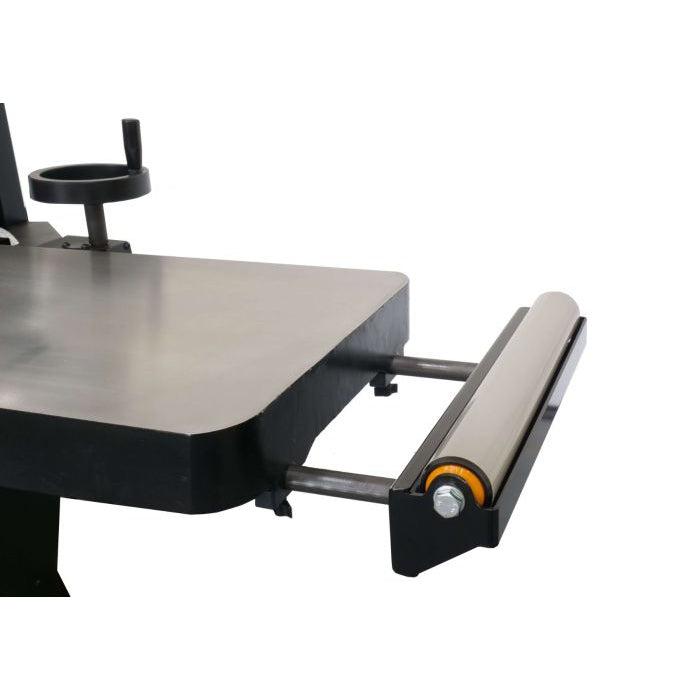

    • In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials

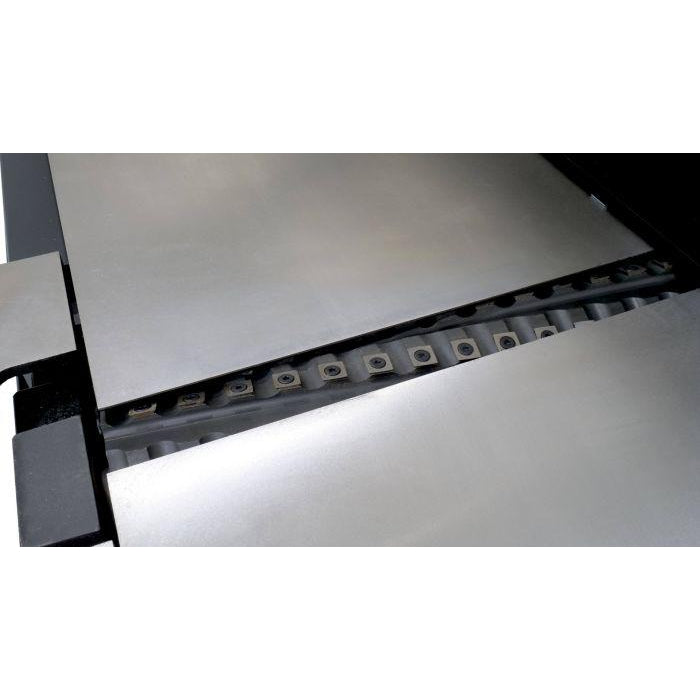

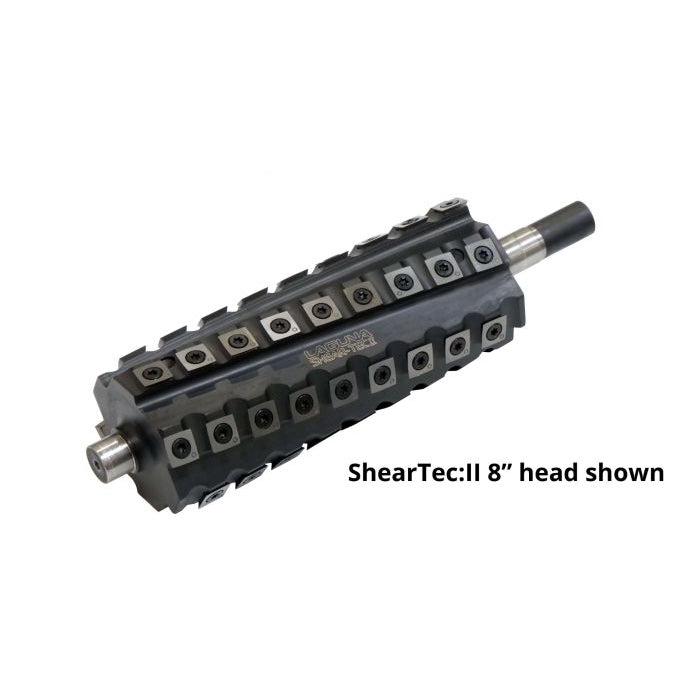

    • ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

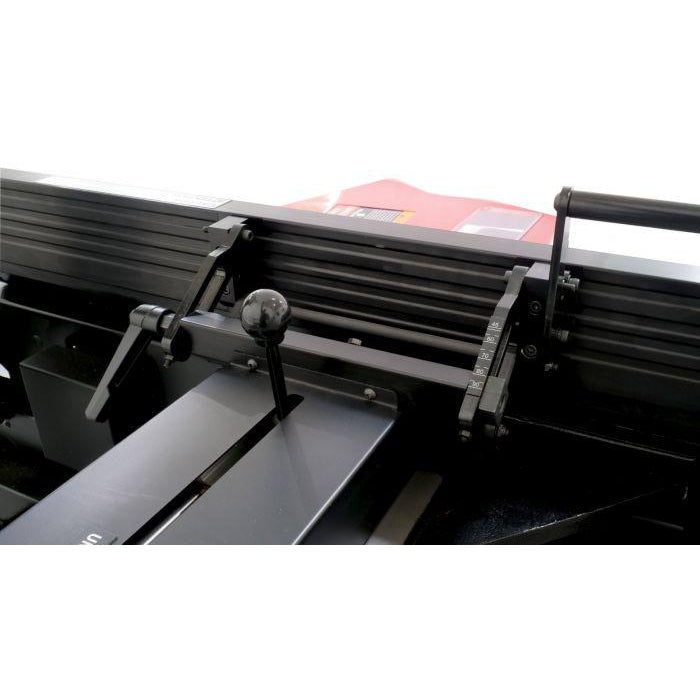

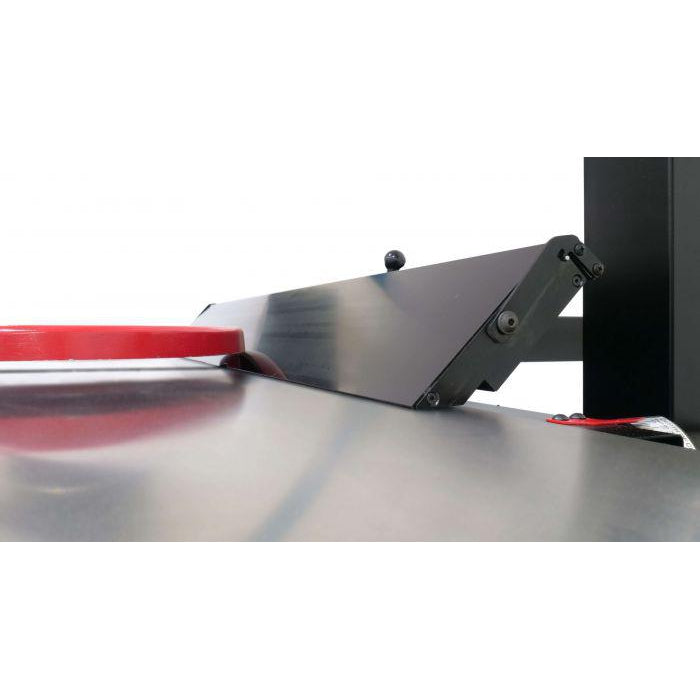

    • Deluxe Fence – 5-¾” fence with flip-down small fence for intricate work

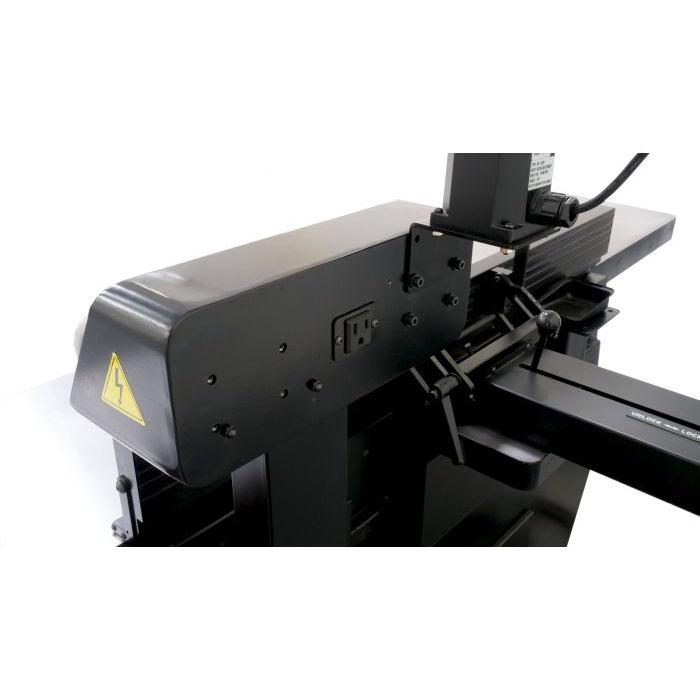

    • Worklight Ready – Built-in outlet and bracket for optional LED work light
    • Power-feeder Ready – Included bracket to mount optional power-feeder
