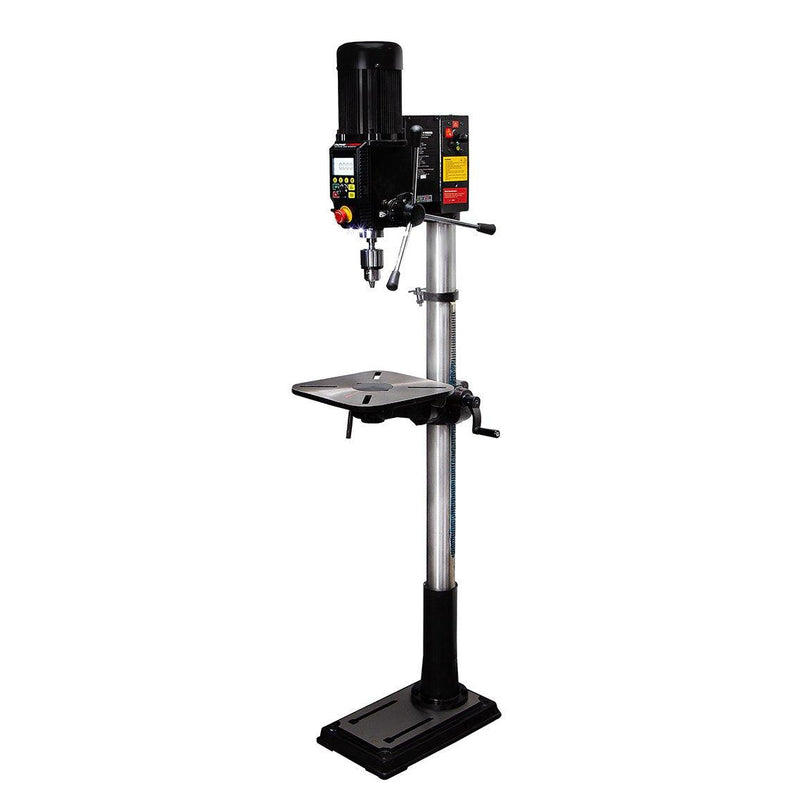

NOVA VIKING 16″ DVR FLOOR MODEL DRILL PRESS

من NOVA
5,490.00 SR
15% ضريبة القيمة المضافه للطلبات داخل المملكة
SKU 83706

NOVA VIKING 16″ DVR BENCHTOP/FLOOR MODEL DRILL PRESS

 موعد الوصول المتوقع 10/11/2021

NOVA’s latest machine is a 16” DVR Benchtop Drill Press. The NOVA Viking is a 1HP,
150-3,000 RPM (programmable to 5,000) electronic variable speed machine, with a large easy to read display and a variety of intelligent features such as Auto Start feature for one handed drilling and Electronic Depth Stop. The built in LED lights, laser location makes it easy to see clearly and locate your center. The table can be tilted and rotated.



AVAILABLE IN BENCHTOP (83700) AND FLOOR MODEL (83706) OPTIONS.

led DIRECT DRIVE POWER
AND CONSISTENT
TORQUE
1HP DVR Smart Digital Motor powered by STRIATECH delivers correct speed and power to maintain optimal torque direct to the drill head – across the entire speed range. No belts or pulleys to cause vibration or power loss. A belt and pulley system absorb typically 20% of the motor power before it even gets to the tool. The DVR motor delivers constant torque with all materials.
led SMART DIGITAL MOTOR Smart sensors interacting in a number of ways –
safety, intelligence workshop assist, and performance
led BUILT IN LASER
AND LIGHT
Quickly locate center position with the cross haired laser.
Two powerful LED lights to keep your project well lit.(This feature not available in all markets.)
led CAST IRON
WOODWORKING
TABLE
Solid Cast Iron for maximum stability.
Maximum flexibility and options.
Woodworking design to provide maximum clamping and accessory options.
12 2/3″ x 12 2/3″ (320mm x 320mm)
Tilting and Rotating
speed" ELECTRONIC
VARIABLE
SPEED
150 – 3,000 RPM (programmable to 5,000 RPM); Versatile for a variety of projects –
Large deep hole drilling, mortising, high speed sanding.
led FORWARD
AND REVERSE
For LH drill bits, gives you more flexibility for projects.
led ELECTRONIC
DEPTH
STOP
Quickly and accurately automatically stops to the depth you program for your project. Precision drilling.

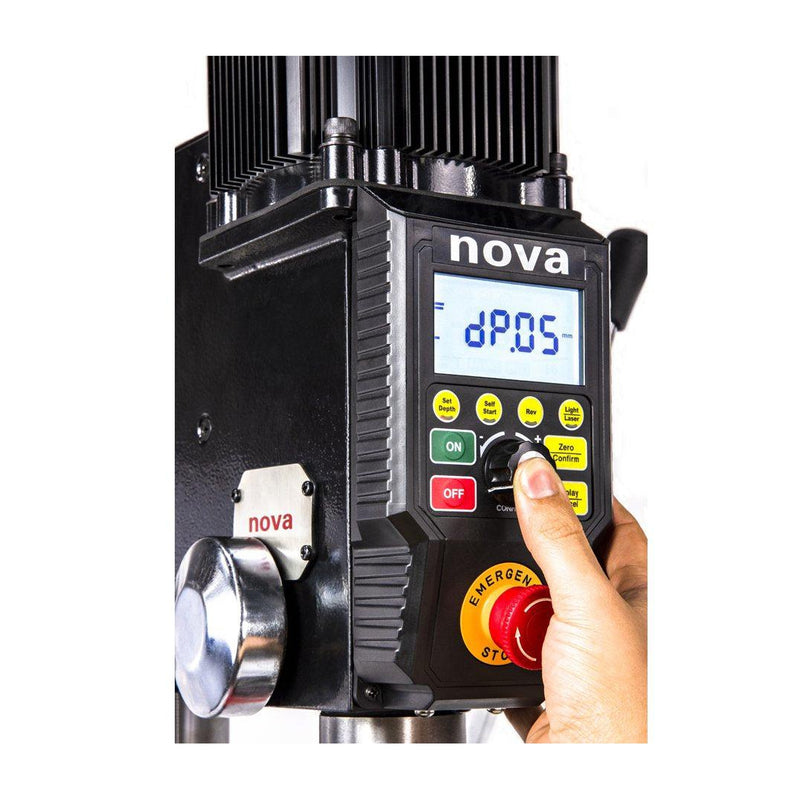

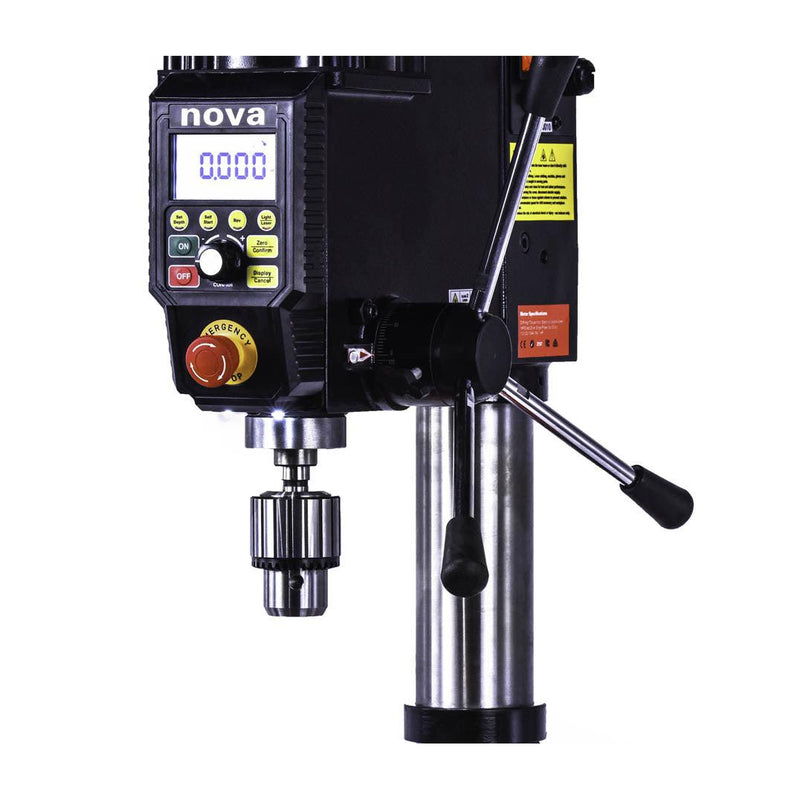

display DISPLAY Large, easy to read display with choice of metric or imperial (fractions or decimal).
Easy to switch between modes.
display SPLIT MOTOR
(EXPOSED)
Easy access to motor. Much easier to get serviced for both customers and dealers.
led SELF START Enables a one-handed drilling operation by automatically turning on and off.
led BRAKING E-stop.
SPECIFICATIONS Variable Speed: 150 – 3,000 RPM (programmable to 5,000 RPM)
Swing: 16”
Stroke: 4.5”
Spindle to Table: 12 2/3″ (320mm)
Spindle to base: 22 2/3″ (575mm)
Drill Chuck: 5/8” (1-16mm)
Spindle Taper: 2MT

Quill:
4.5” of quill travel in just 1 1/4 revolutions of the handle, which allows for far greater accuracy.

Motor:
DVR High Torque 1HP motor, Electronic Variable Speed.
1HP Direct Drive; Single Phase Input Supply.110V-220V, MAX 10A-15A, 50Hz/60HzWeight: 154lbs/68.85kgs
