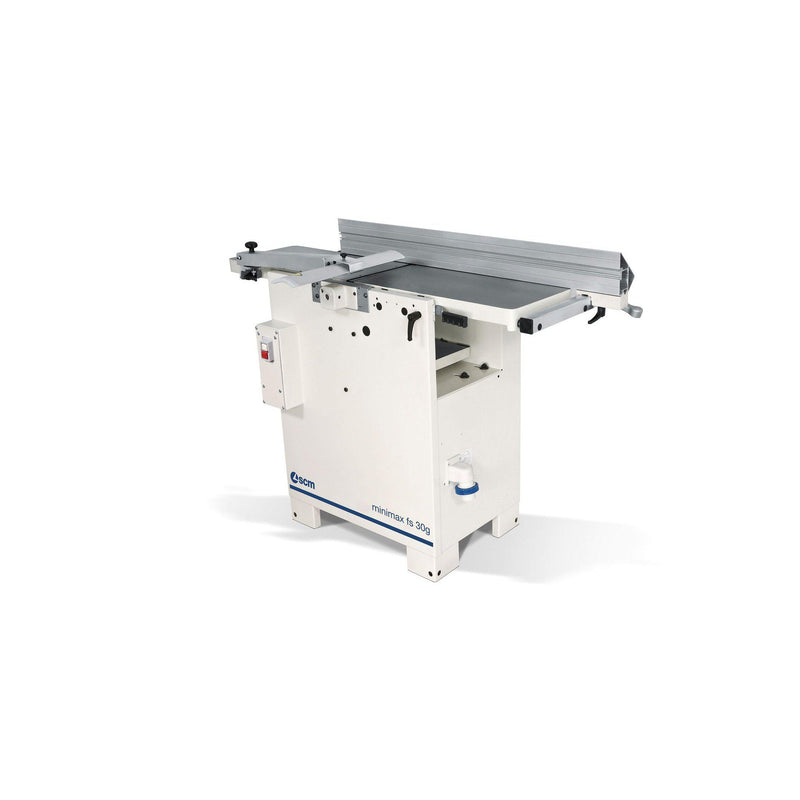

SCM minimax fs 30g jointer & planer
New and cost effective combined machine is ideal for D.I.Y. woodworkers and the small joinery workshops, able however to assure also the typical performances of the professional machines in its compact dimensions.
The planer unit has a cutter block with 2 re-usable knives (the “Tersa” disposable knives system with 3 knives and rapid clamping is available as an option). Genius machines also have saw-planer fences with an anodized aluminum extrusion and a support with clamp for fast positioning.
Practical and ergonomic
To keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine. Thanks to an efficient feed system, the thicknessing unit can process wood up to 200 mm thick.
“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
|Cutterblock diameter / no. of standard knives
|mm / no.
|Dimension of standard knives
|300 x 25 x 3
|Max. stock removal
|Surfacing tables total length
|Thicknessing table dimensions
|300 x 450
|Feed speed on thicknesser
|Min. ÷ max. workign height on thicknesser
|3 ÷ 200
|singel-phase motors starting from
|2.5 / 50 (60)
